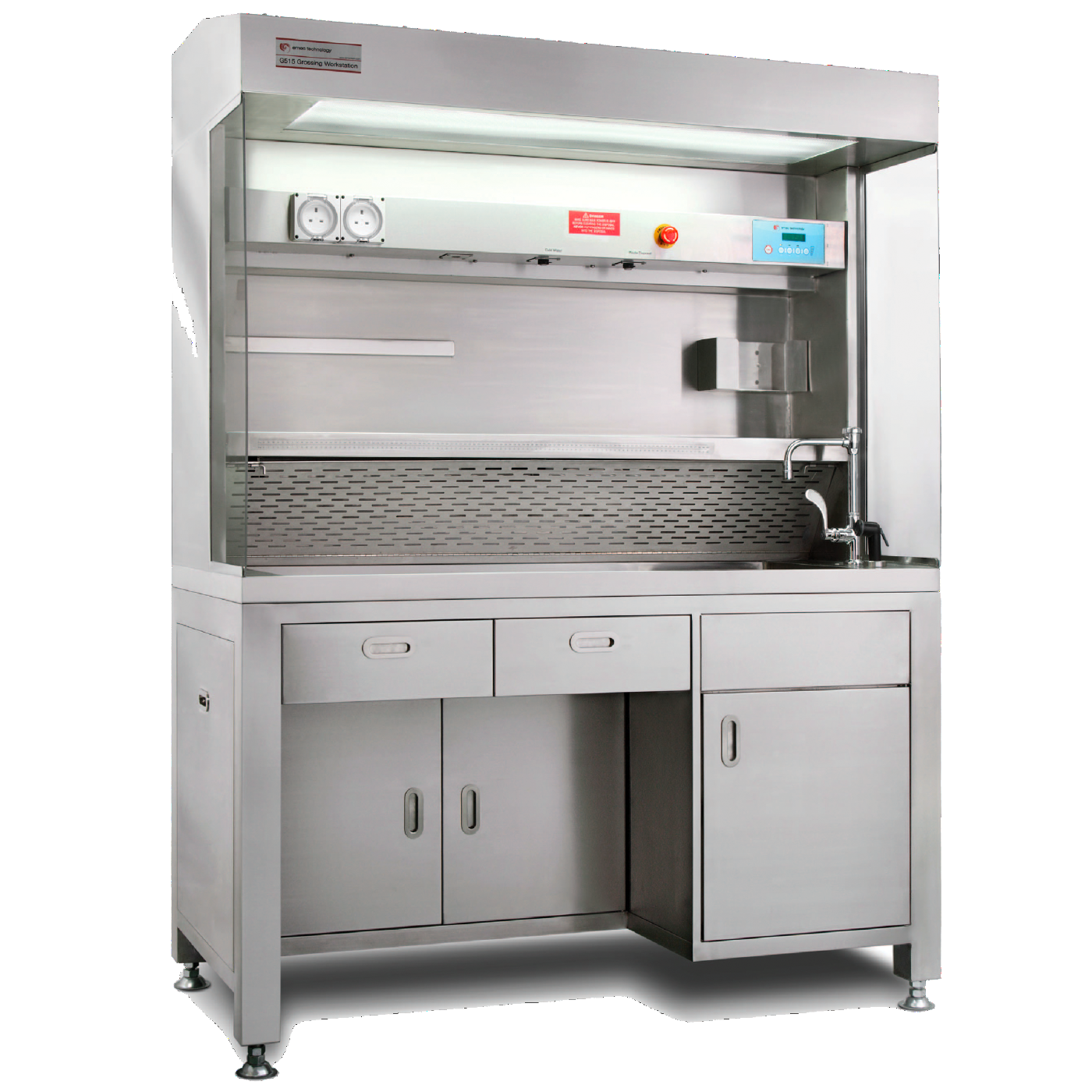

GROSSING STATION,
EMEC G515

The G515 grossing workstation provides a multi featured ergonimic, safe and practical work area for grossing station of sampels. All features are within easy reach while harmful formalin fumes and odors are efficiently drawn away from the operator leaving a safe, clean, bright and odor-free environment.

Product Specification

Able To Customise

No matter the size of your work space or nature of your operation, EMEC grossing stations can be customised precisely to suit your needs, or choose from our standard models.



G515 Pathology Workstation

Laboratory safety is an ever growing concern particularly with regards to exposure to chemicals and fumes. Emec Technology is commited to safety in the laboratory by providing hospital pathology equipment, using the latest technology and designs ensuring safety, efficient and comfortable environment for your laboratory personnel.



Air Processing to Suit Your Situation

The G515 workstation is equipped with a back draft ventilation system ensuring the operatior is completely proctected from harmful formaidehyde fumes. The G515 can be fitted with a re-circulating exhaust system with high efficiency pottasium permanganate or carbon filters which safely neutralize the harmful fume or can be fitted for external exhaust.


Standard Features

  • Back / down draft high volume, multi-speed fans
  • Fixed or motorized elevation work surface
  • Deep intergral sink with removeable perforated cover plate
  • Hot and cold water outlet with standard or wrist blade handle and vacuum breaket protected
  • Powerful light giving clearly illumated work surface
  • Twin IP65 water resistance socket outlet for plugging in appliances
  • Integral inch/cm ruler
  • High quality stainless steel construction
  • Hands free operated waste disposal and water outlets
  • Heavy duty waste disposal 0.5 HP
  • Stainless steel paper towel holder and magnetic instrument bar
  • Board and formaline dispenser and collecting tank


Operational Feactures

  • Camera arm
  • Magnifying arm
  • Heavy duty waste disposal 0.75 HP
  • Hand free dictation system with digital recording

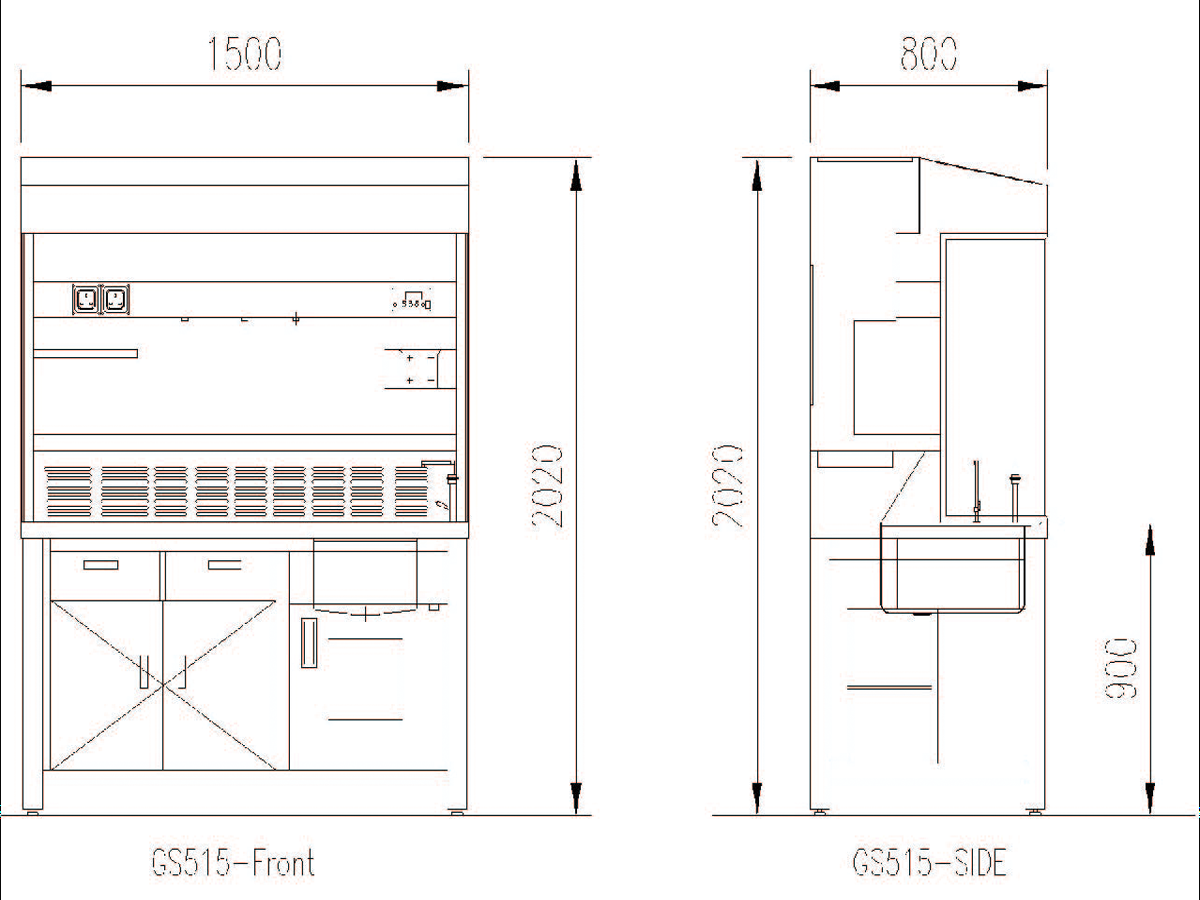

Technical Drawing

G515 Gross Station Specification

Dimension 150cm wide x 202cm height x 80cm deep
Work Surface
  • 900mm high for fixed models
  • 860-1100mm for elevating models
Sink 350mm x 400mm x 230mm deep
Filters 2 formaldehyde neutralizing potassium permanganate filters
Electrical
  • 240v 50 Hz, 1 Phase, 5 Amps
  • Requires 13 amp power supply, facility supplied RCD recommended
Plumbing
  • 1/2" industrial grade flexible hose supplied for hot and cold water connection
  • 1 1/2" ID UPC Heavy Duty flexible hose for connection to drainage
Temperature Operational : 10deg C - 32deg C
Humidity Operational : 10-95%

Ordering Information

Part No Description
G312 Grossing Station, Manually Controlled, Fixed height: 120cm wide
G315 Grossing Station, Manually Controlled, Fixed height: 150cm wide
G512 Grossing Station, Proximity Controlled Fixed height: 120cm wide
G515 Grossing Station, Proximity Controlled Fixed height: 150cm wide
G515E Grossing Station, Proximity Controlled Motorized elevation work-surface 150cm wide
CAM-01 Flexible Camera Arm
PPF-120 Replacement filters for G312 and G512
MAG-01 Magnifying Lamp 240v
EXC-120 Exhaust collar for connection to facility ducting for G312 and G512
EXC-1500 Exhaust collar for connection to facility ducting for G300 and G500
EXC-500E Exhaust collar for connection to facility ducting for G312 and G500E
